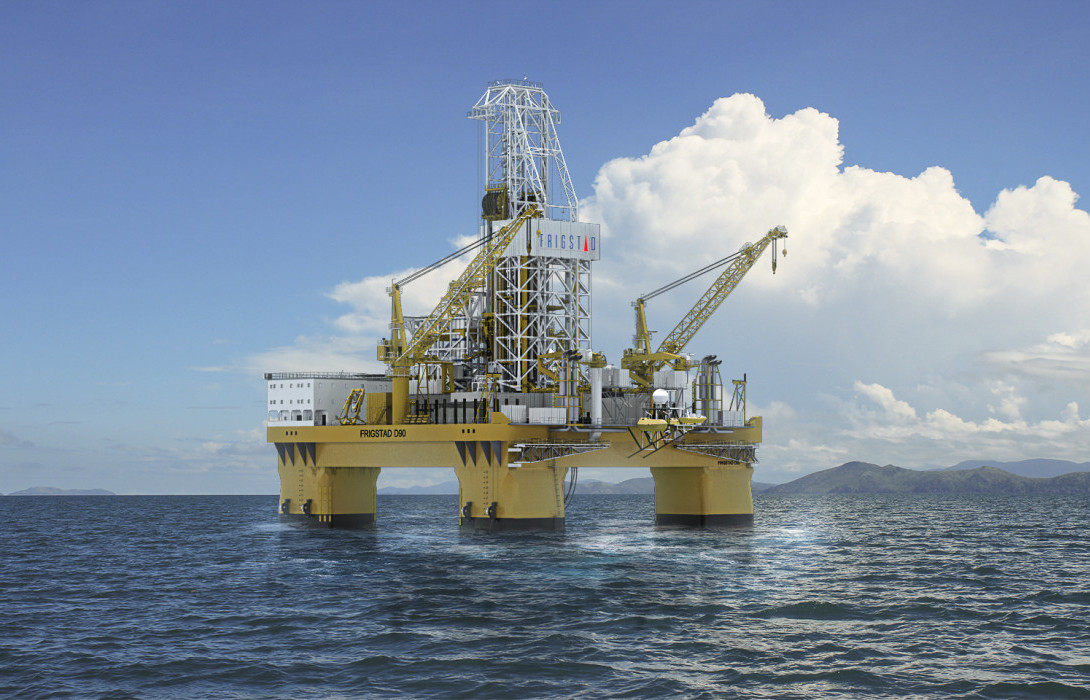

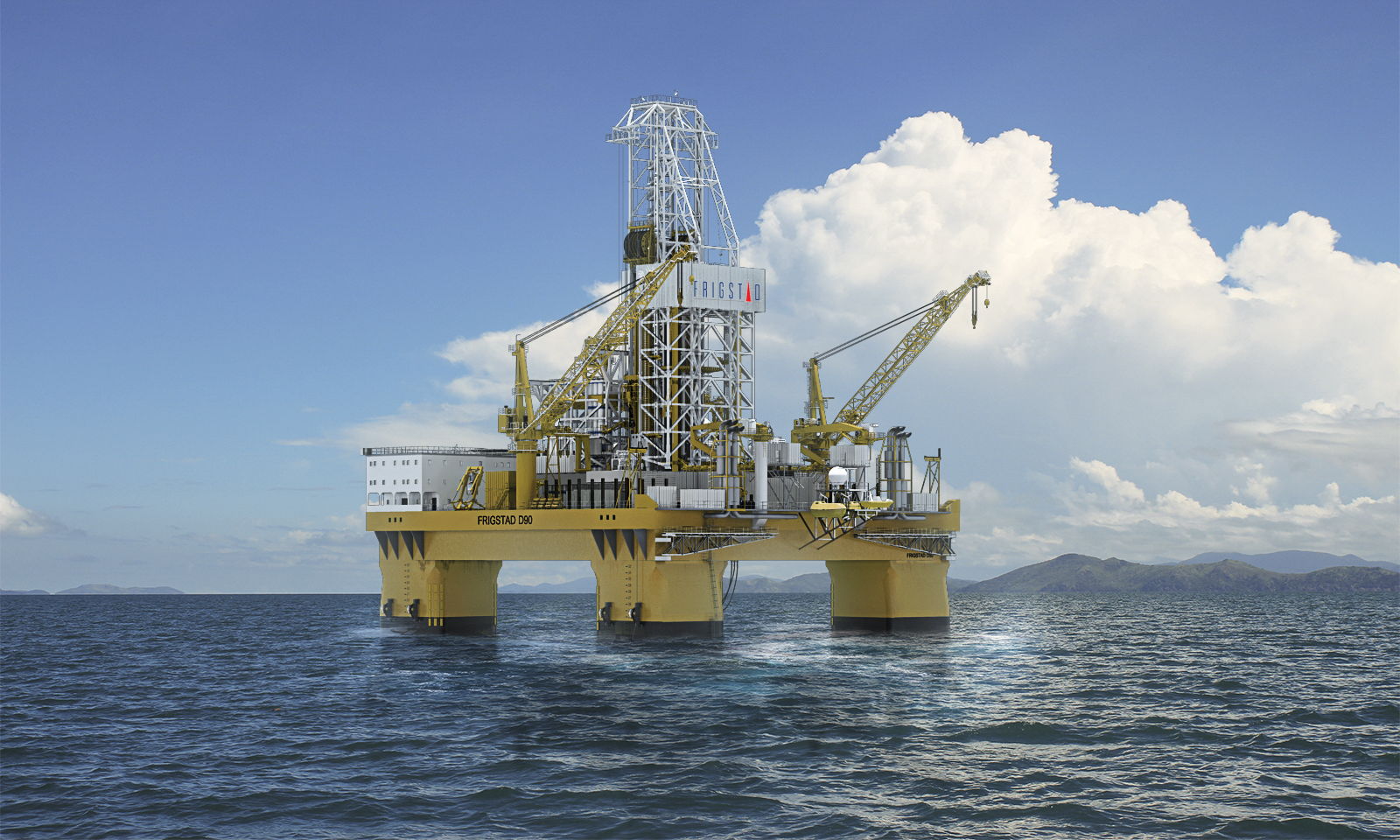

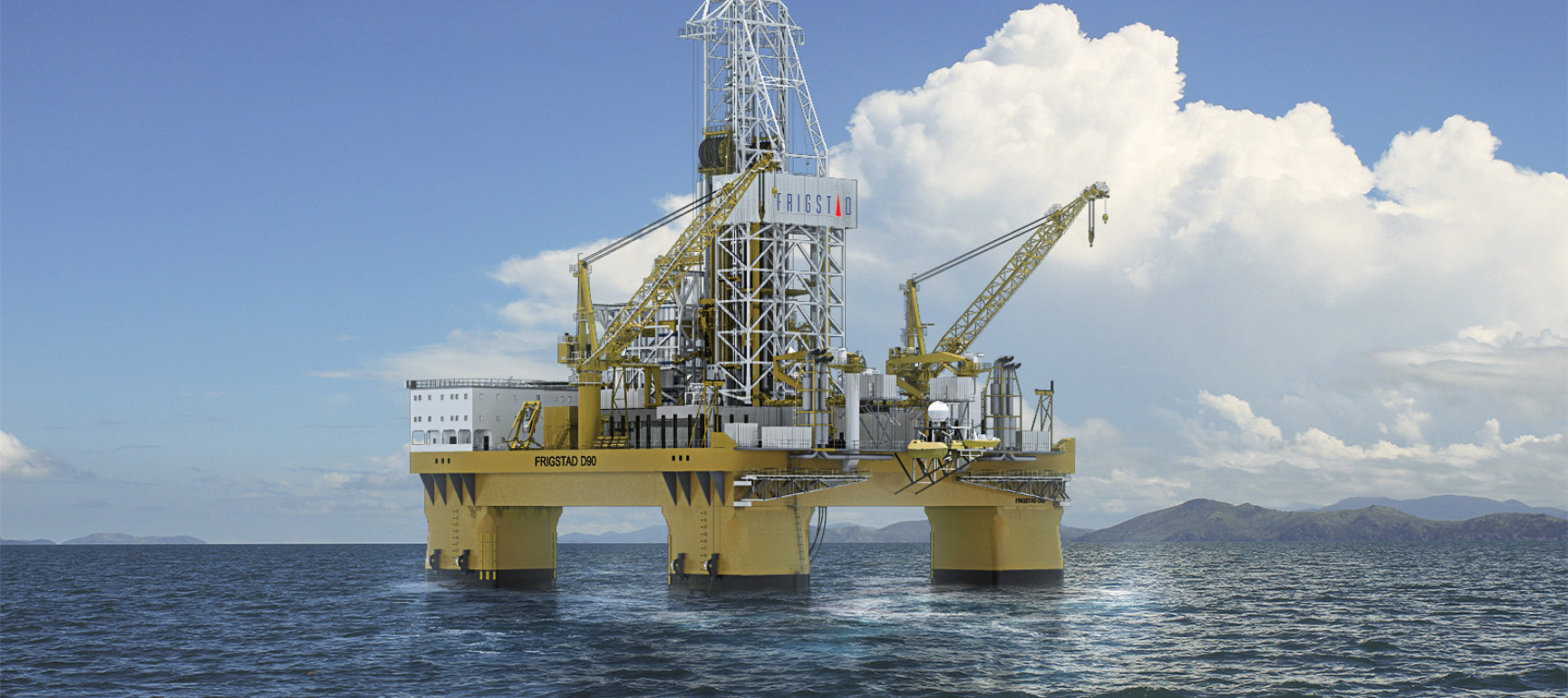

REGULATIONS
SOLAS 2008, MARPOL 1973/78, IMO MODU CODE 2009, all with latest amendments
CLASSIFICATION
DNV +1A1 COLUMN STABILIZED DRILLING UNIT, DYNPOS AUTRO and ER (DP3), POSMOR-ATA, CRANE, HELIDECK-SH, ECO, F-AM, DRILL & BWM-T
ENVIROMENTAL OPERATING LIMITS
Maximum wind velocity 70 knots / 100 knots
PRINCIPAL PARTICULARS
Length of pontoons 117 m (383.8 ft)

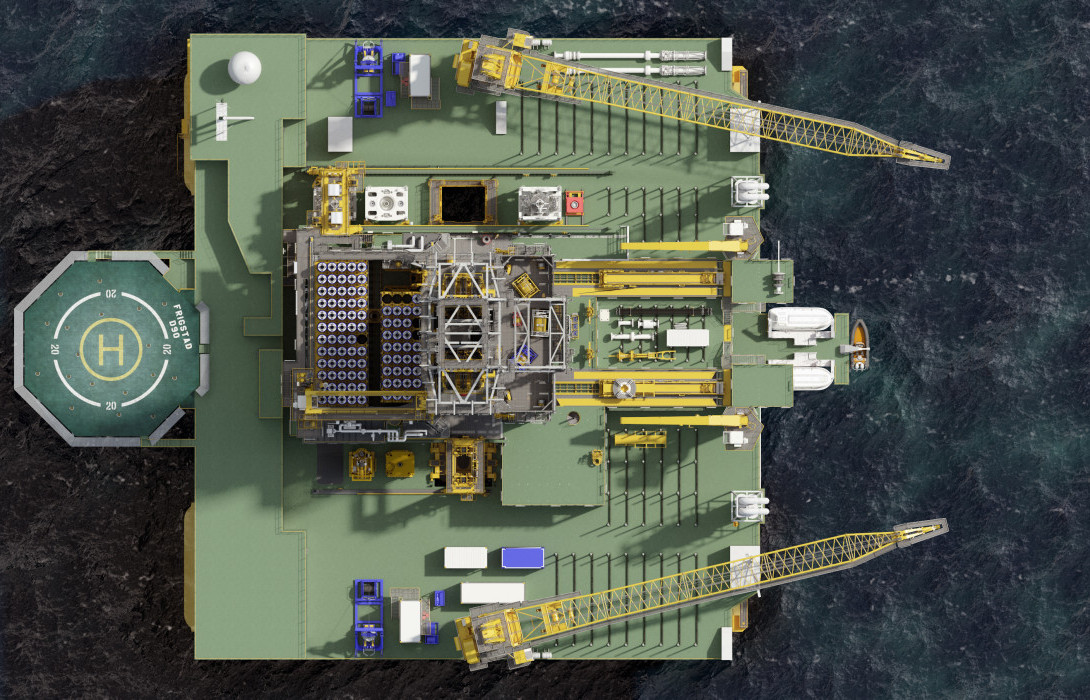

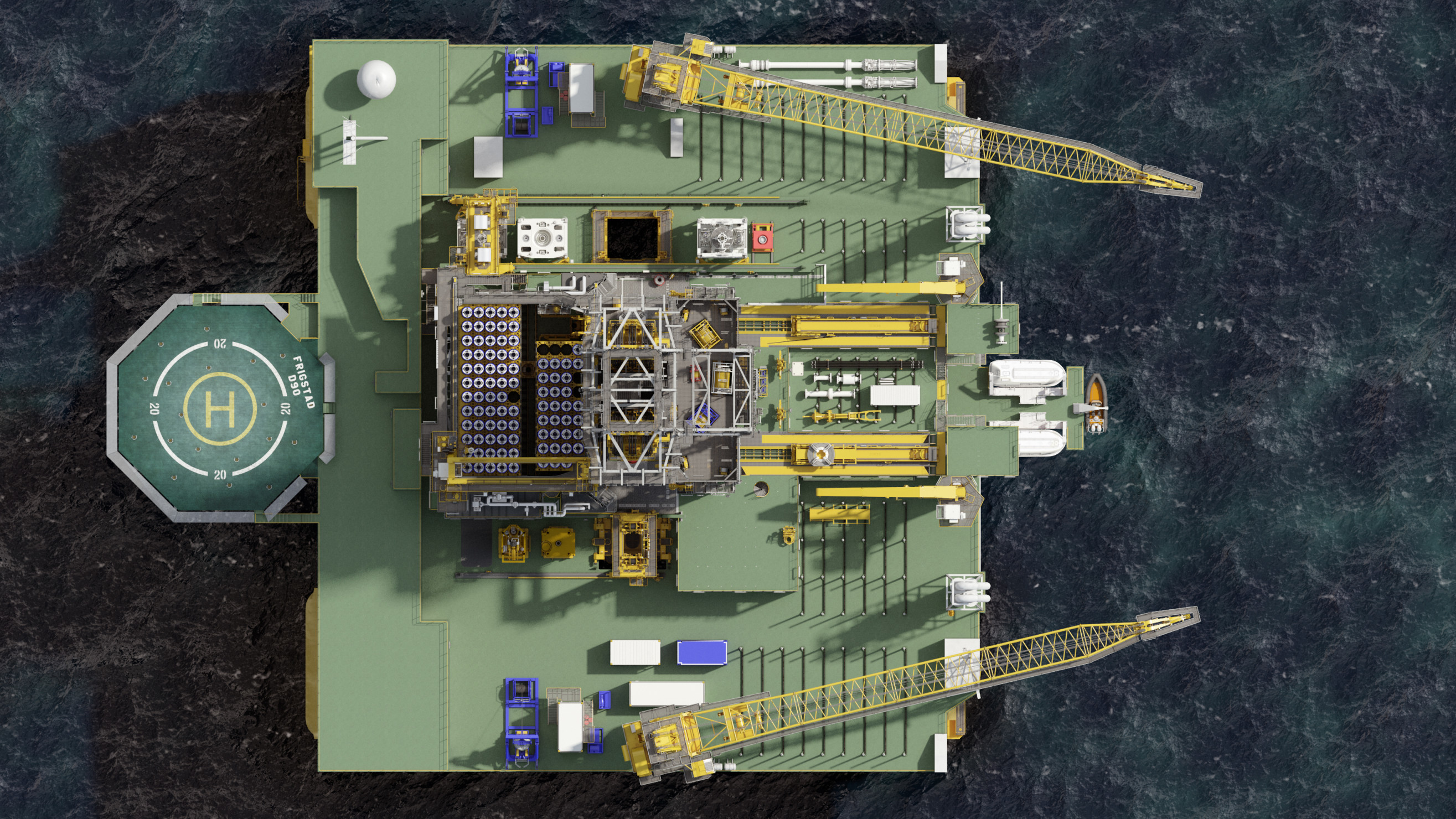

Width & length, pipe rack deck 89 x 81 m (292 x 265.7 ft)
Height to pipe rack deck (ABL) 43.3 m (142 ft)
Draft (operational) 24 m (78.7 ft)
Draft (survival) 18 m (59 ft)
Displacement (operational) 69,802 t (76,943 st)
Displacement (survival) 61,525 t (67,819 st)
Displacement (transit) 51,448 t (56,711 st)
Water depth (max) 12,000 ft (3,657 m)
Drilling depth (max) 60,000 ft (18,288 m)
STORAGE CAPACITIES
Bulk mud 440 m³ (15,538 ft³)
Bulk cement 440 m³ (15,538 ft³)
Sack material, upper hull 9,000 sacks
Base oil for mud, pontoon 653 m³ (4,106 bbls)
Liquid mud / brine, upper hull 1,603 m³ (10,100 bbls)
Liquid mud / brine, pontoon 2,144 m³ (13,485 bbls)
Diesel fuel oil (MDD), pontoon 4,694 m³ (29,524 bbls)
Drill water, pontoon 4,811 m³ (30,260 bbls)
Potable water, pontoon 1,256 m³ (7,900 bbls)
Open pipe rack deck area 4,000 m2 (43,055 ft2)
Variable deck load (max oper.) 10,000 t (11,023 st)
Variable deck load (max transit) 6,700 t (7,385 st)
Payload (max operational) 16,700 t (18,408 st)
Cutting storage, column 600 m3 (21,189 ft3)
ACCOMODATION / OFFICE
Total capacity of 200 persons with all single person bedrooms with windows. Ample office space and service facilities.
MATERIAL HANDLING
Two (2) 150 t revolving deck cranes with 57 m boom. Capable of handling under water thruster change out. Two (2) 14 t knuckle boom cranes for tubular handling.
Cargo handling and logistics Two (2) 6 t cargo elevators & several forklifts to service storage and machinery areas on pipe rack deck and inside the deck box and pipe rack deck including: engine rooms, mud pump room, cement unit room, workshops, sack storage, warehouse, galley stores
MARINE SYSTEMS
Main power / emergency power Eight (8) diesel engines, each with 5,760 kW capacity. Total installed power is approx. 46, 000 kW (62,500 BHP).
Power distribution 11 kW AC main switchboards and DP with MP + AW drives and WM system.
Thruster DP Class 3. Eight (8) 4,5 MW azimuth thrusters (DNV DYNPOS AUTRO ER).
Dynamic positioning Dynamic positioning
Mooring system Four (4) double drum winches with 600 meters of 83 mm wire and eight (8) fairleads for connection to pre-set mooring system (DNV POSMOR ATA).
DRILLING SYSTEMS

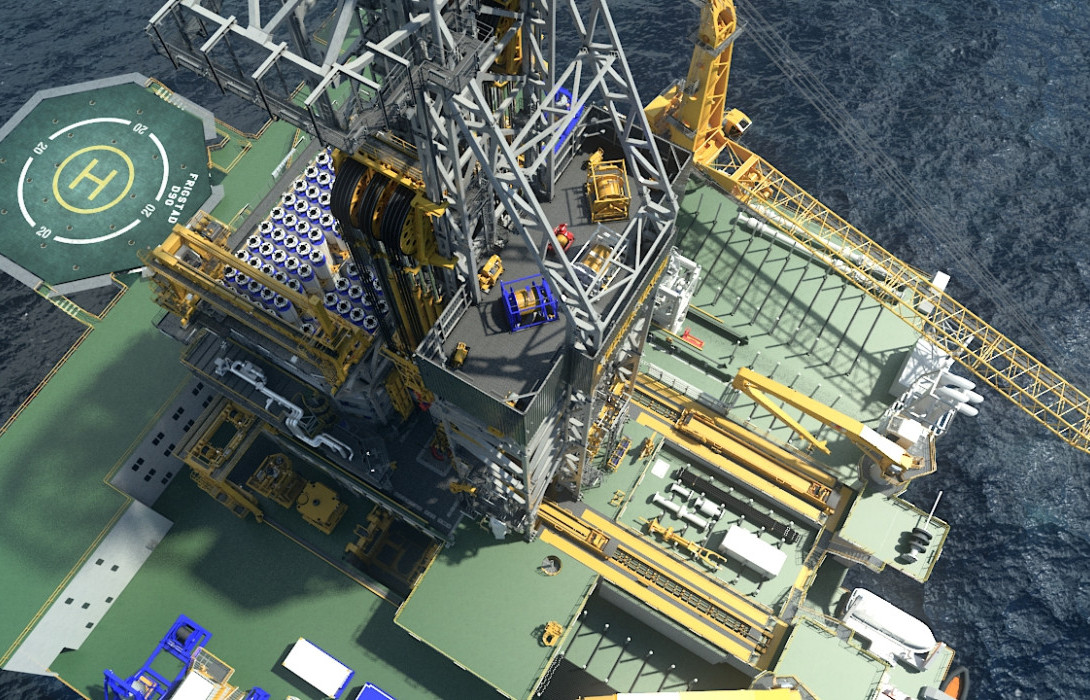

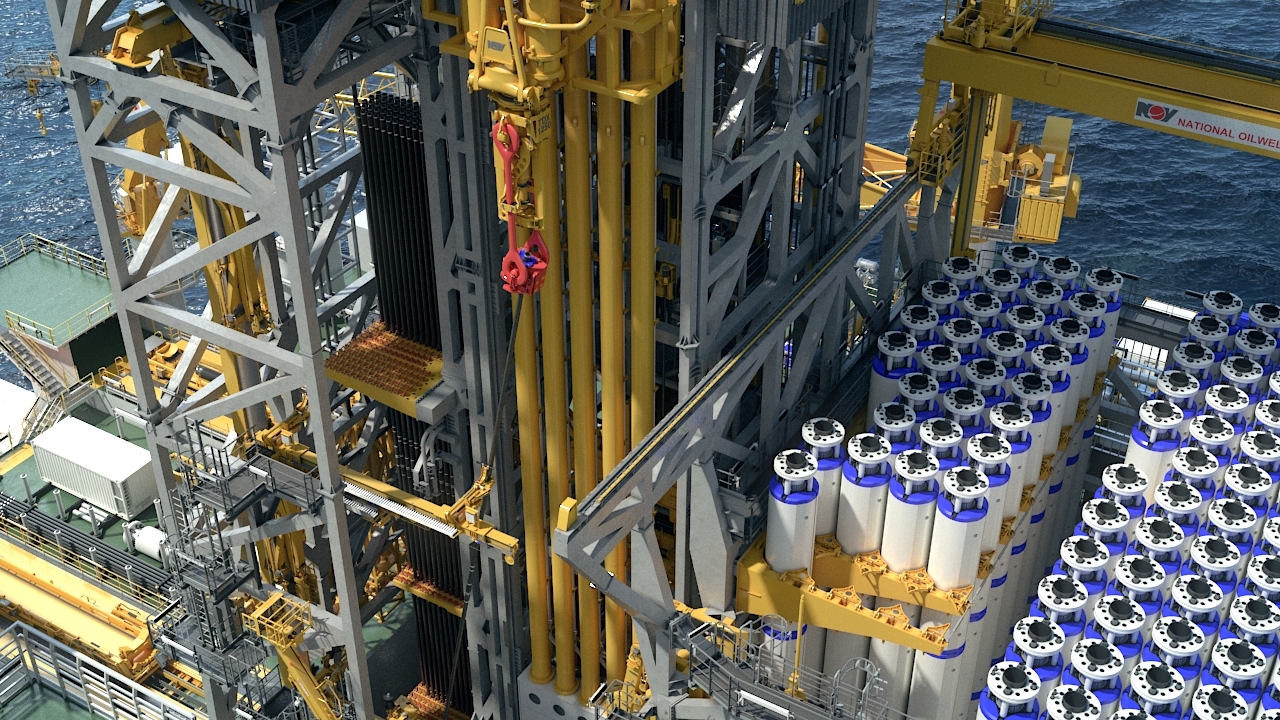

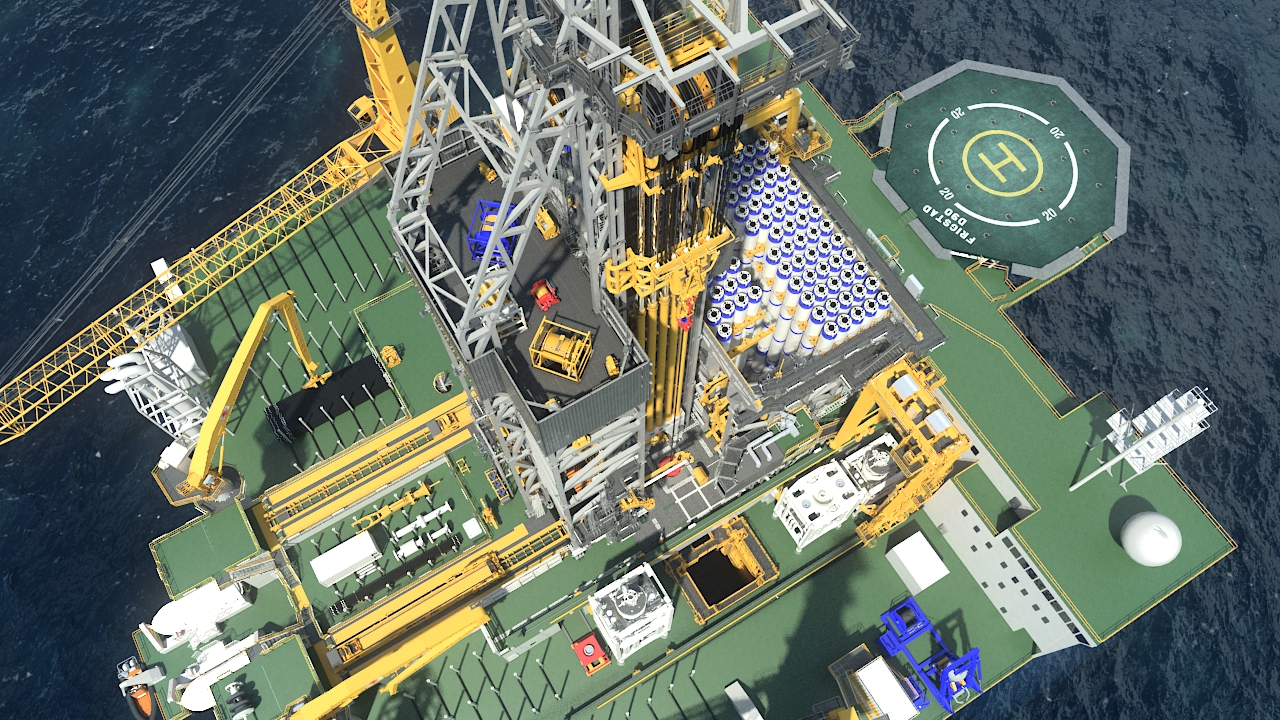

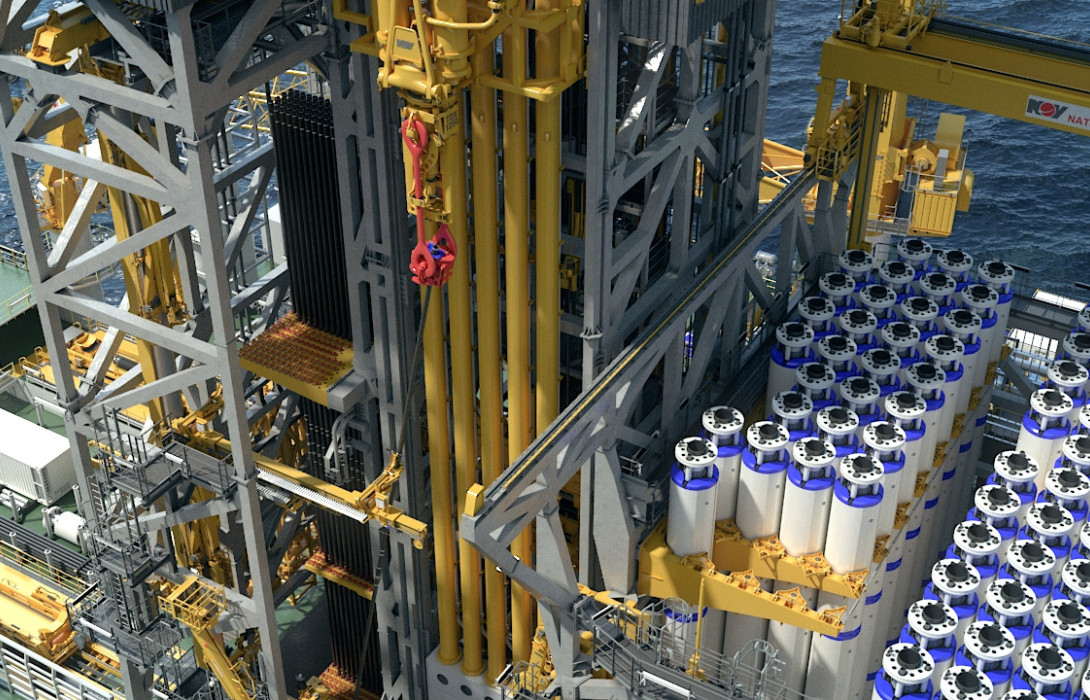

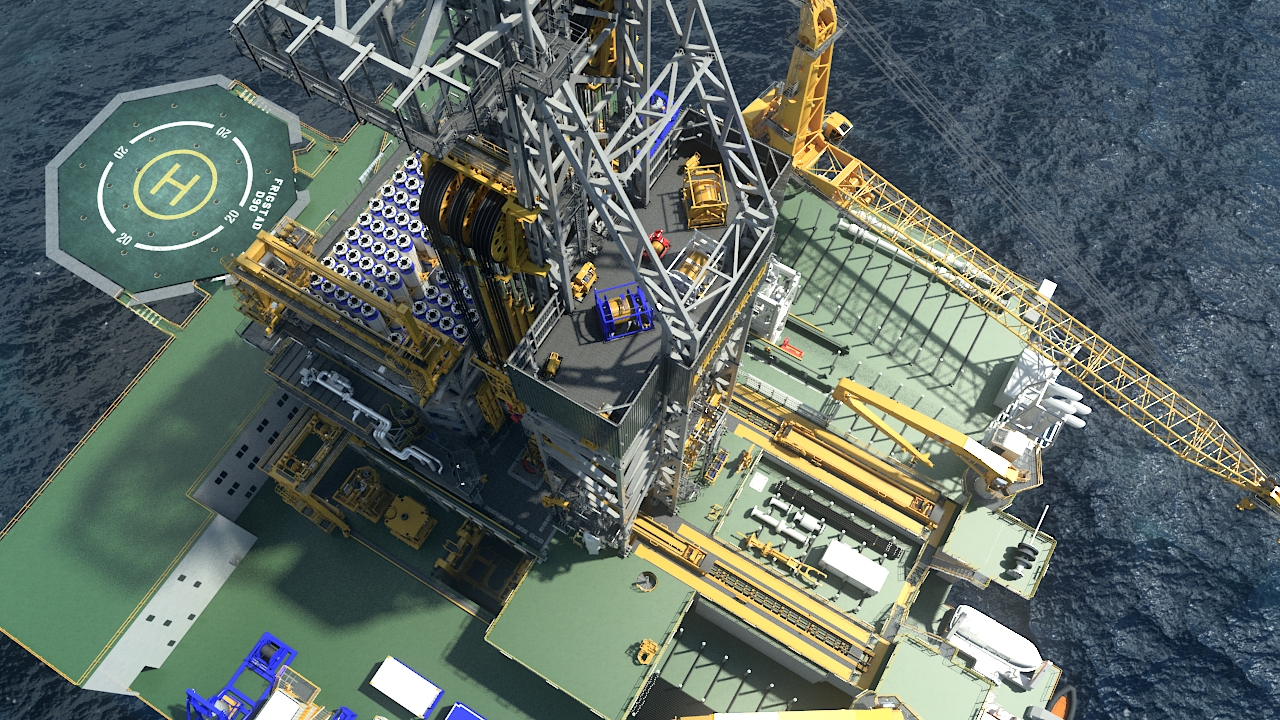

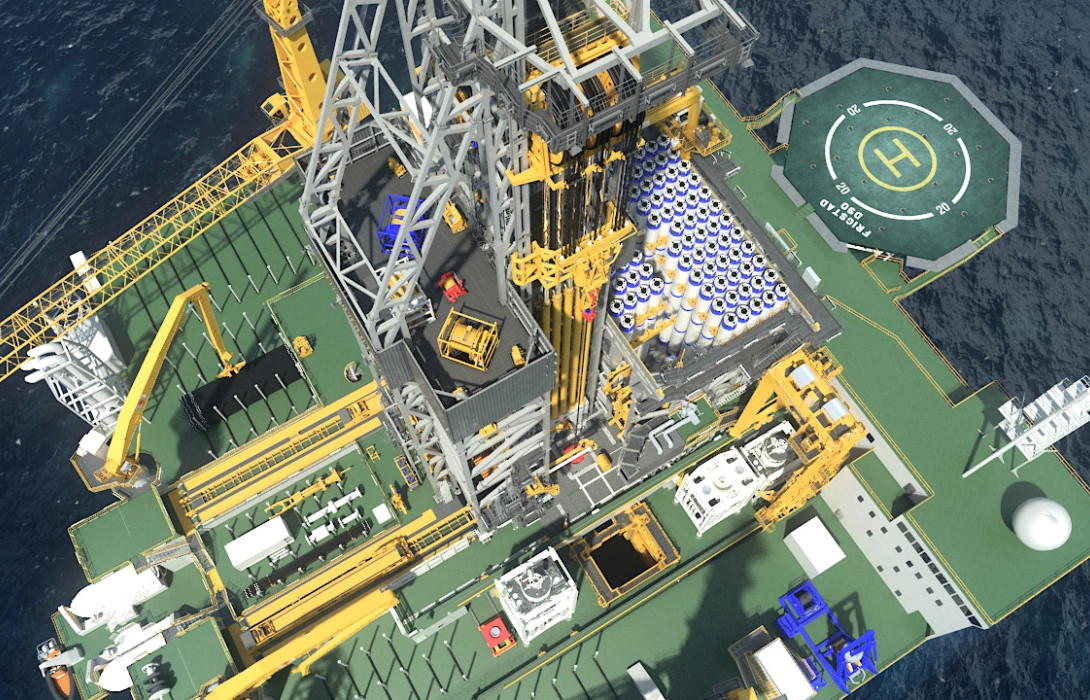

Drilling rig Dual quadruple cylinder rig with full dual handling capabilities. Each rig have 1,400 st hoisting capacity with 1,250 st load in elevator. Setback for 60,000 ft quadruple drill string / casing in triple stands. Two (2) diverters / flow lines.
Rotary table Two (2) 75.5” rotary with independent drive.
Top drives Two (2) top drives, with 1,250 st capacity.

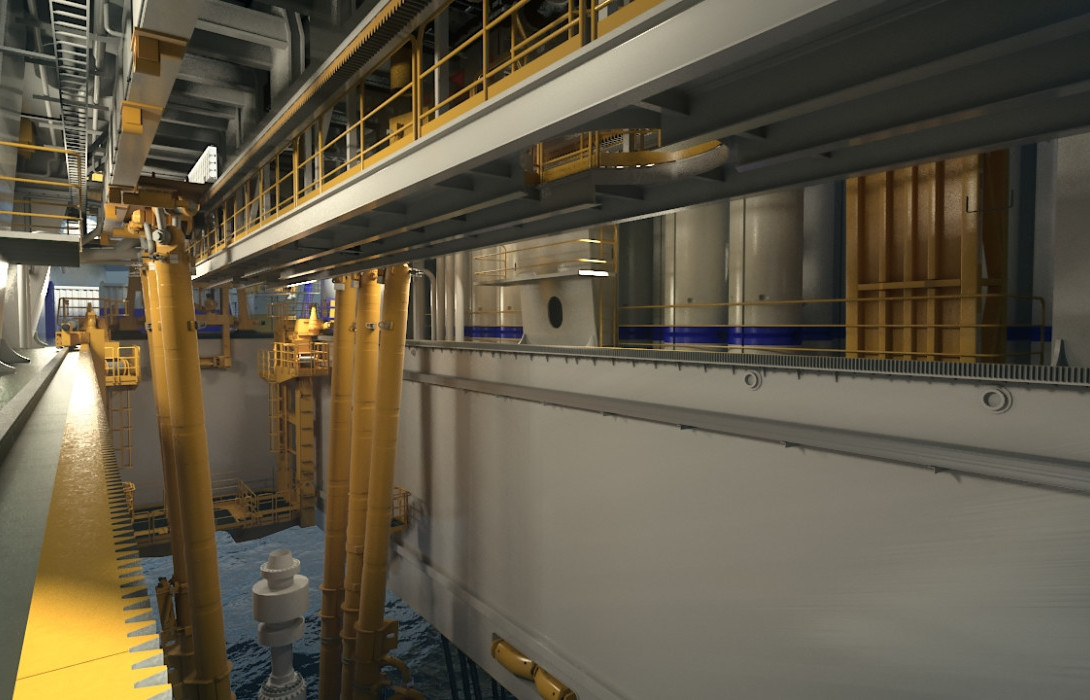

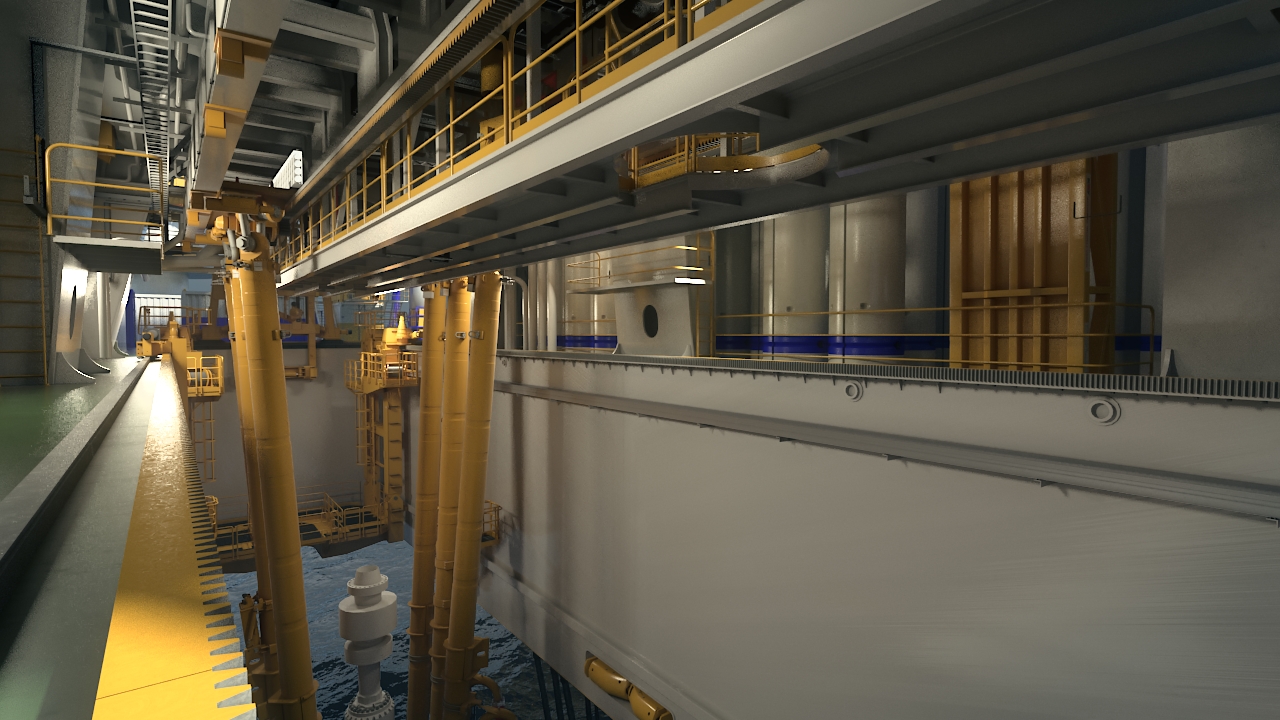

Riser tensioners Six (6) hydraulic cylinder riser tensioners mounted on skid system (skiddable at full load). 4,800,000 lbs tensioning capacity.
BOP and riser Two 18 ¾” 15k, 7 cavity BOP 21” riser, 55 ft joints with K&C, booster and hydraulic lines. Vertical marine riser rack for 10,110 ft, 110 ft stands (2 x 55 ft lengths). Storage onboard for 12,000 ft of riser. Designed for up to 8-ram BOP, and 20K ready.
Drill string Drill strings with subs, drill collars, heavy weight drill pipes, casing.
DRILLING FLUID SYSTEMS
Mud pumps and treatment system Four (4) main mud mumps, triplex 2,200 HP, 7,500 psi wp. Four (4) triple deck multi-sizer shakers. Two (2) desilters, two (2) centrifuges, one (1) gumbo conveyer, two (2) degasser units and two (2) 60 bbls trip tanks. Storage of 600 m3 cuttings in columns
OTHER
Helicopter deck capacity Designed for Sikorsky S61/S92, MI8 and EH 101 helicopters. Max 15,6 tons.
Life-saving equipment Four (4) lifeboats with total capacity of 400 persons (98 kg, 21” seats). Sixteen (16) inflatable life rafts with capacity of 25 persons each. Two (2) fast rescue boats.
